Bidirectional MIDI communication

Grid modules by default send out MIDI data with the MIDI action blocks, which are configured on the various events.

In different environments - Digital Audio Workstations, VST Plugins, Host software - usually a MIDI out, transmit or a similar setting can be found. This setting will send back the changed MIDI data to the device, which has an active mapping with the changed parameter. Sometimes a parameter is not only controlled by Grid, but you change it with your keyboard or mouse. If you want to send back MIDI data to Grid, you have to find and enable this setting.

Using the MIDI RX Callback in the System Element Setup

To handle incoming MIDI messages, you need to use the following callback function in the System element's Setup:

self.midirx_cb(self, event, header)

event Table Structure​

  • event[1]: Channel (0–15)
  • event[2]: Command (e.g., CC: 176, Note On: 144)
  • event[3]: Param1 (usually the CC or Note number)
  • event[4]: Param2 (usually the value)

header Parameter​

The header parameter is useful for filtering incoming messages.
We typically use header[1] = 13, which means the message is coming from a DAW, synth, or other external gear.

Simple Examples​

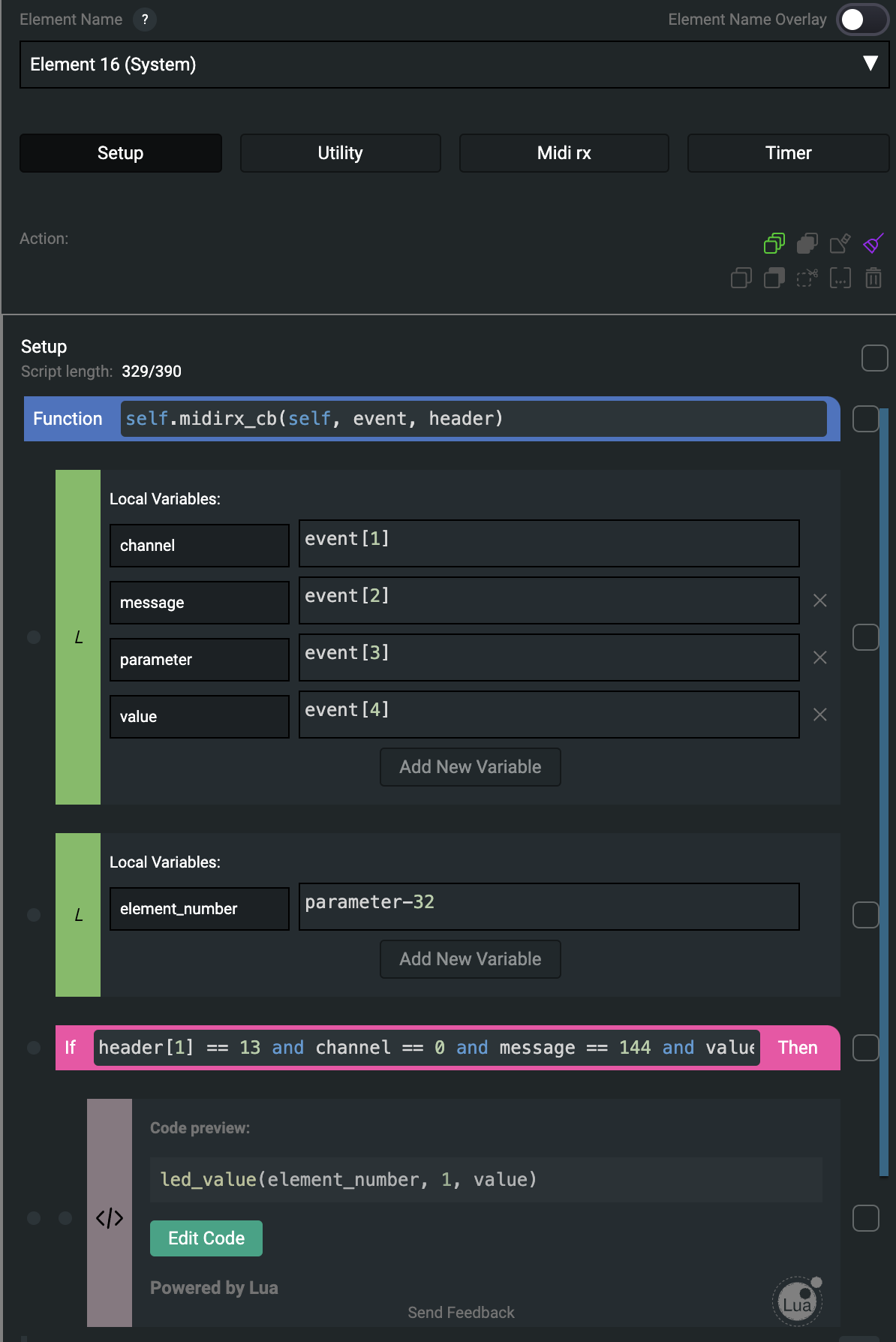

Example: Dynamic MIDI RX Mapping for BU16​

You can upload the BU16 MIDIRX to the System element, which is ideal for dynamic factory profiles.

When you plug in one BU16 module, the first button (element 0) sends a MIDI Note On message (144) with note G#0 (32).

Since the controller sends note 32 and the DAW responds on the same note, you need to use element_number offset set to -32.
This ensures that the first button (element 0) LED reflects the correct state based on the incoming note value.

Button LED intensity based on incoming MIDI values

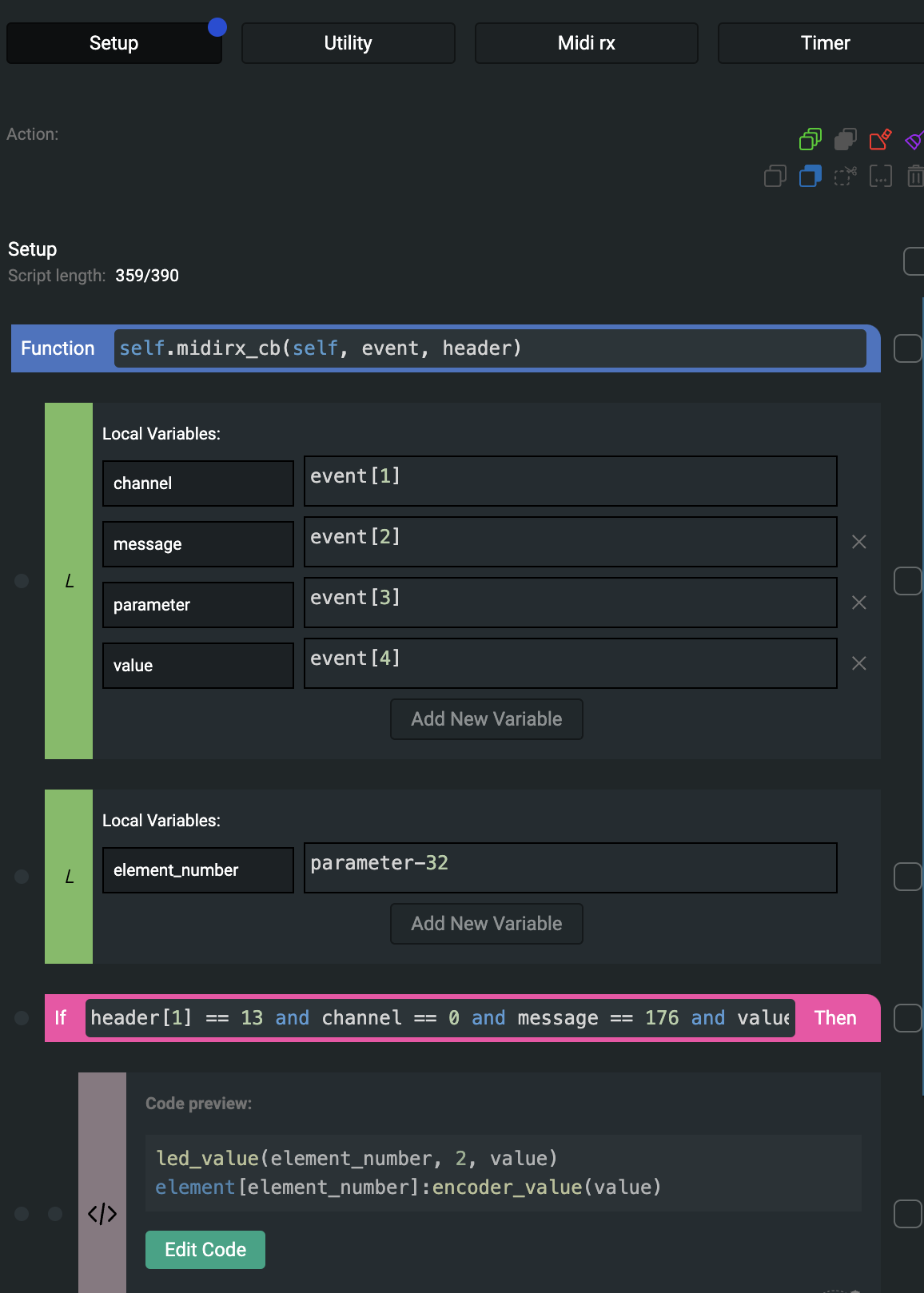

Example: EN16​

You can upload the EN16 MIDIRX to the System element, which is ideal for dynamic factory profiles.

The encoder rotation on the EN16 sends Control Change (CC) messages with command 176.

The incoming MIDI message changes the element LED intensity and also the encoder value.

Since the controller sends note 32 and the DAW responds on the same CC, you need to use element_number offset set to -32.
This ensures that the first encoder (element 0) LED reflects the correct state based on the incoming CC value.

LED intensity and Encoder value based on incoming MIDI values
